I know, i know that militaria collectors never touch a koshirae. But maybe, sometimes the piece need help to overlive the next decade.



So in this case.



I bought a nice gendaito in optical good koshirae. On monday evening i take a deeper look in the saya because some wooden chips get out with the sword. And i hear a short rough sound steel on steel by pulling the sword out. I remove the koiguchi and pull out the wodden saya carefully.

It fall out into pieces. The glue has gone and the lower part was complete open. Not good, really not good for the blade.



The coloring of the saya was only a mixture of black rust, black ground color and some parts green color. I hold the saya into the light, look in it and saw a little light shining near the kojiri.

I feel this would be a bigger task.



I removed now all parts of the saya to see in what condition the metal saya really is. Rust every were. It was untouched since the war, but there was no care for the metal parts. The blade is in very good condition.



Now the work starts. What to do with it? Looking for another saya? The sword has a deep sori. Hard to find another. So i bring it next day to a metalworker and ask him how to treat it. He look on it and see a rust hole on the end of the saya. We remove the coloring, he sanded it with a sandblower carefully inside and remove the rust outside from hand with sandpaper. Then he made a sheet metal piece and weld it carefully on the end. After this he slur it clean.



I went home helpless for the next step. After taking a shower i cook some rice to care for the wooden inlet. It is very thin and light so this was more an operation than a restore. I clean the inner parts of the wood and start to make riceglue. I took some ricepaper and cut it into stripes. I glue the wooden parts and wrap the glued ricepaper around the critical places. On wendsday the wooden saya was hard and i was happy. On work i phoned with a car restauration specialist for the basic color of the saya. I sent him some pictures and he said that this structure color is a old nitro structure paint. He could make me a spraying bottle and sent it with express. I payed only 10 EUR for the bottle, what a luck. He gave me some advise to spray it slightly to controll the texture. I recieved it on Thursday and start with coloring the basic paint an Friday.



Today i finished with airbrush the olive, braun color on the saya. Later is sprayed a satin matt finish. In the evening i resampled all the saya parts together. I was thinking to alter it but i do it not. It should not blame the sword. It is restored.



After the completation this evening i was happy to do it so. The sword fits now like it should. The blade is protected now and and the koshirae looks well. I learned that it is not good in every case to leave it as it is all the way. Sometimes you must start to do something.



I missed to make photos from the condition and the steps. I must say that i was also a little in panic, because the sword wasn't cheap and i was fearing to touch it. But if you go in small steps the result will be good.



gendaito_koshirae_before.jpg  saya_1.jpg saya_2.jpg

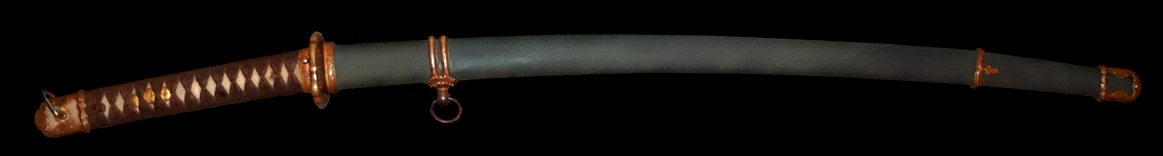

This photo i made some hours ago with flash. It looks better in real light.

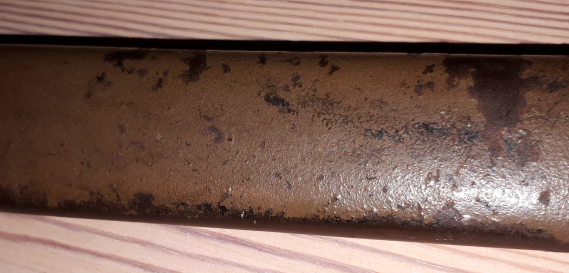

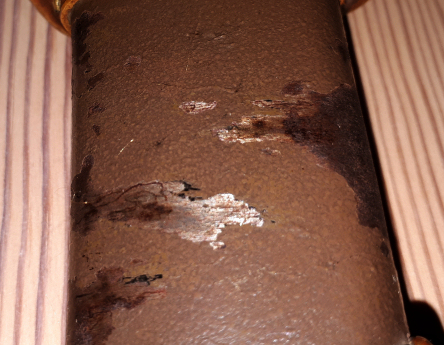

gendaito_koshirae_small.jpg  koshirae_texture.jpg



This should not be an advise from a amateur to do so. And i know that some wil be very critical with me that i treat it in that way. But in the end the Saya and maybe the blade would be destroyed by time.



Thanks for reading



Chris


  • SteveM, b.hennick, raymondsinger and 6 others like this

#2 Bruce Pennington

Bruce Pennington

    Sai Jo Saku

  • Members
  • 1,266 posts
  • LocationColorado

Posted 16 December 2018 - 01:34 AM

That's a fabulous job Chris! I keep most of mine in original condition, but I've had to strip a couple (gold and black "Bubba" paint) and repaint one.

Very rewarding feeling to restore one.
  • TETSUGENDO, vajo and IJASWORDS like this

#3 TETSUGENDO

TETSUGENDO

    Sai Jo Saku

  • Members
  • 1,716 posts
  • LocationUSA

Posted 16 December 2018 - 02:15 AM

Chris,



You carefully preserved it for the future, leaving things as is would have guaranteed future deterioration, excellent work!



Cheers,

    -S-


  • vajo likes this

StevenK


#4 Ooitame

Ooitame

    Jo Saku

  • Members
  • 174 posts
  • LocationUSA

Posted 16 December 2018 - 03:39 AM

Job well done.
  • vajo and hobnails like this
Eric

#5 Stephen

Stephen

    Oyabun

  • Members
  • 12,383 posts
  • LocationIowa

Posted 16 December 2018 - 04:54 AM

Outstanding!!!
  • vajo likes this

                   Stephen C. USMC DEC 63 APR 73

"It's a beautiful day in the neighborhood, won't you be my neighbor!"


#6 Stegel

Stegel

    Jo Saku

  • Members
  • 208 posts
  • LocationMelbourne Australia

Posted 16 December 2018 - 05:00 AM

Top Job !! with excellent result.



As it's winter over there, you can now sit back proudly and enjoy a shnaps or two!


  • vajo likes this

Stegel


#7 paul griff

paul griff

    Jo Saku

  • Members
  • 197 posts
  • LocationMaesteg Wales G.B.

Posted 16 December 2018 - 08:18 AM

Hello Chris,
Well done,superb job..
Regards,
Paul..
  • vajo likes this

#8 Dave R

Dave R

    Jo Jo Saku

  • Members
  • 575 posts

Posted 16 December 2018 - 10:00 AM

 Well done! Thanks for sharing this, you have saved the sword.


  • vajo likes this

Dave


#9 Brian

Brian

    Administrator

  • Administrators
  • 13,276 posts
  • LocationSouth Africa

Posted 16 December 2018 - 10:38 AM

Nice job!


  • vajo likes this

- Admin -


#10 EdWolf

EdWolf

    Jo Jo Saku

  • Members
  • 392 posts
  • LocationThe Netherlands

Posted 16 December 2018 - 11:04 AM

Nice job! Good skills, the paint looks very good.
  • vajo likes this

Ed


#11 vajo

vajo

    Juyo

  • Members
  • 2,733 posts
  • LocationGermany / Bavaria

Posted 16 December 2018 - 01:31 PM

Thanks all for the kind words.



I see some very difficult problems in restoring a Gunto. The inner wood saya should be newly made, but if have no clue how they made this very thin inlet and fit it exactly for the metal saya.

The second one is the wet looking drop texture. I found different acryl based paint textures like that modern chinese saya. But all this have very big drops. Not that fine round ones like the Japanese lacquers so i decide for the rough one which is seen on some saya (mostly under the leather sheath.

The third problem is the color. The urushi lacquer brings a deep looking and smooth feeling in hand.



I have a lot of respect for the craftmanship of these military Koshirae. We see and handle it often but when the original beauty is gone it is nearly impossible for a none professional to restore it like the old ones.


  • Dave R, TETSUGENDO, IJASWORDS and 1 other like this

#12 IJASWORDS

IJASWORDS

    Jo Jo Saku

  • Members
  • 580 posts
  • LocationNSW AUSTRALIA

Posted 16 December 2018 - 02:08 PM

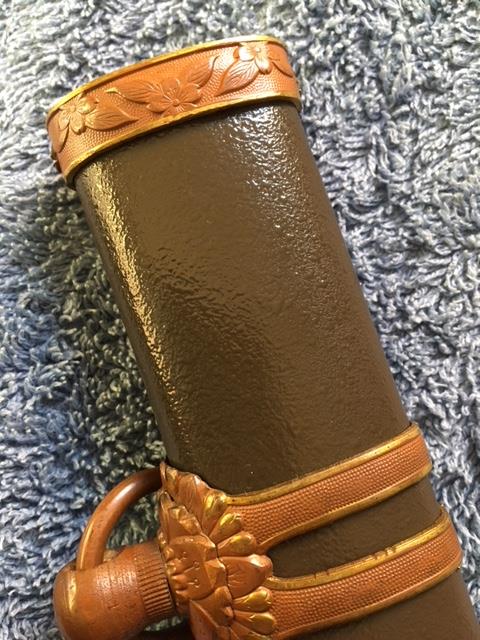

Hi, color from a previous post.

Attached Thumbnails

  • z11.JPG

  • Bruce Pennington and vajo like this
Neil

#13 tokashikibob

tokashikibob

    Jo Jo Saku

  • Members
  • 555 posts

Posted 18 December 2018 - 04:00 AM

Excellent!
  • vajo likes this
Bob

#14 Mister Gunto

Mister Gunto

    Jo Saku

  • Members
  • 109 posts
  • LocationSacramento, USA

Posted 13 January 2019 - 10:55 AM

Great work!
  • vajo likes this

Bradley S.
