Flint62Smoothie

I will certainly check it for any markings once received ...

I found some parts I need! … just picked up the basstardized one for $200, where I’ll hopefully be able to use the serpentine & mainspring on my other Tanegashima.

Thanks @Bugyotsuji! The barrel length needs to be about 42" long and I'd like a cannon muzzle. So far I have checked 1 of the 2 other Tanegashima barrels that I have and one is close. It should be close enough that a custom barrel maker should be able to make a tapered octagonal barrel for it. I may see if Bobby Hoyt in PA (USA) would be up to it. Is there any barrel maker you would suggest? The breech width is about 1-3/16" and tapers to 7/8" at about just under 40" up, right at the end of the upper forend, so it would need to be at least a 42" octagonal barrel to allow for a large, flared 'cannon' muzzle. The lock works perfectly and it is only missing a barrel, along with the pan, brass pan guard and brass pan cover!

FYI, I am bidding on another 'parts gun' so I won't cannibalize this one, but will buy or make a barrel for it.

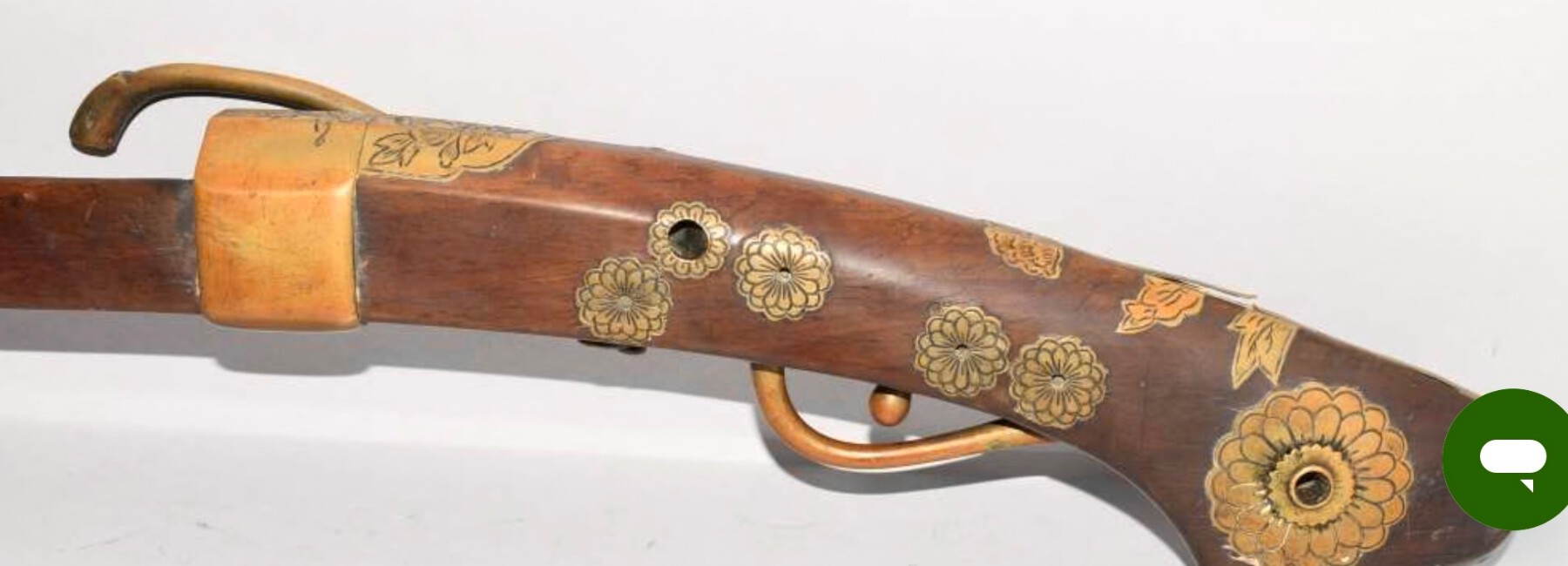

Many here may know I’ve been on the hunt for Tanegashima parts, whereas I have 2 other Tanegashimas in stages of restoration, where: -One needs a serpentine, brass mainspring (gun has a steel replacement spring) and pan guard. -The other, posted a few posts down, is shootable after a bore honing, and only needs a trigger guard. I just won this US auction, for only $195, complete less a barrel. I admit I bought it “as a parts gun”, but in reality it has superior inlays! Would it be kosher to ‘swap’ another barrel into it, if it fits? Or just cannibalize it … ? Which is really not the best option, I’d agree. To have a really nice shooter, maybe I’ll ask Bobby Hoyt in PA to make a custom tapered barrel with a cannon muzzle! I’d appreciate any/all input! Cheers!

Thanks all for the comments! Yes, this one apparently had a TG at some point, as the inlets are empty and pins are missing, but more so ... I can see a slight bit of wear where they once sat. My goal is to restore it to shooting condition. I'll probably send the barrel off to Bobby Hoyt in PA to be honed smooth. He does a remarkable job, if people haven't heard of him before. Off-topic ... yes, but he'll work on any BP barrel and has never had a threaded breech plug that he's not been able to successfully remove. He also will check the integrity of welded shut BPlugs. He even takes smaller bores and re-rifles them to whatever larger caliber the barrel steel will safely accomodate. Last time I had a smoothie barrel honed it was only $60 USD ... and it looked brand NEW! He also took a 62-cal smooth barrel and rifled it to be 62-cal rifled for my British Baker (think Sharpe's 95th Rifles) and that was only $100.

… now to find OR FORGE a replacement trigger guard!

Thanks! I’ll measure the bore later. I just thought the inletting looked ‘different’, what with the deep scores, but that just could the individual’s build method.

Last photo … but I can take more as advised …

Just came in … Fully functional, but just missing the Trigger Guard & 2 pins and 1 pin that holds the main spring. The breech plug came right out! The bore will need refreshing. Most interesting and curious, in no particular order: -Appears to be sub-40 caliber, of 39” barrel -No Japanese markings -The large cross-pin securing the serpentine is locked in place by a pin down through the top, behind the tang -No ‘through hole’ to hold cord -Barrel is RIBBED the entire length, on the top-most octagonal facets -Stock shows a line on the bottom, below the ramrod hole, but it is not cut through -Inletting in barrel channel appears different that my other Tangs, with the slot cut below the ramrod hole, but what stands out is the deep scores for the bottom barrel flat Any ideas?

Rust Removal: Link = http://www.big45.com/ If you haven't ever used these...try them. They do work phenomenal! I once had a Colt Python that I bought after it went through a fire, so the blued finish was 'fleckeled' on the sideplate. This B45 metal pad removed all traces of the flecks/rust wthout harming any of the original blue finish. It is incedible for use in bores and on old guns and muzzleloaders. NOTE I've not tried it on an origial Tanegashima yet though ... FYI, steel wool WILL SCRATCH and damage a barrel and/or remove the finish! These 'Big 45' pads won't do either, as they are a proprieitary blend of Monel, which is harder than rust, but softer than steel.

What can one do to HELP move this along to publishing?????? It's possible I could asist with upfront $$. I also have done considerable Tect Writing for the Biotech field, if I can be of any further help with basic formtatting and proof-reading ... although clearly my knowledge of Japanese terms is NON-existant without Google Translator, LOL!

N I C E !

FWIW the best penetrating solution one can use is a DIY homemade mix of 50% acetone and 50% automatic transmission fluid (ATF). Years ago “Machinist Workshop Magazine” did a test on penetrating oils. Using nuts and bolts that they 'scientifically rusted’ to a uniform degree by soaking in salt water, they then tested the break-out torque required to loosen the nuts. They treated the nuts with a variety of penetrants and measured the torque required to loosen them. This is what they came up with: Nothing: 516 lbs WD-40: 238 lbs PB Blaster: 214 lbs Liquid Wrench: 127 lbs Kano Kroil: 106 lbs (ATF)/Acetone mix (50/50 mix): Only 50 lbs!

No, I meant I've ALWAYS been able to get the breech plug out on any BP arm I arm, original or replica, less those like a Toradar where they were forge-welded in place. Please show me a close up picture of the end of your breech plug and I may see the answer for you! ----------------------------------------------------------------------- Now, besides a 'heat hammer' (torch) that alwys helps loosen parts (it is the heating AND cooling cycle that does it, so immediately plunge the hot part into cold/ice water bath) FWIW the best penetrating oil one can use is a DIY homemade mix of 50% acetone and 50% automatic transmission fluid (ATF). Years ago “Machinist Workshop Magazine” did a test on penetrating oils. Using nuts and bolts that they 'scientifically rusted’ to a uniform degree by soaking in salt water, they then tested the break-out torque required to loosen the nuts. They treated the nuts with a variety of penetrants and measured the torque required to loosen them. This is what they came up with: Nothing: 516 lbs WD-40: 238 lbs PB Blaster: 214 lbs Liquid Wrench: 127 lbs Kano Kroil: 106 lbs (ATF)/Acetone mix (50/50 mix): Only 50 lbs!
