#1 raymondsinger

raymondsinger

    Juyo

  • Members
  • 2,503 posts
  • LocationUnited States

Posted 12 January 2019 - 12:29 AM

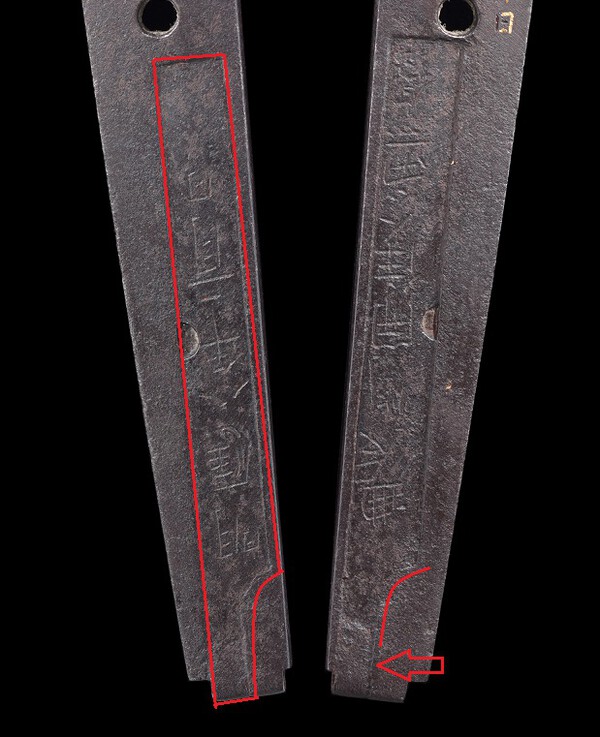

This is something I have not seen before and thought was worth sharing. This has a dual orikaeshimei, in which both the mei and nengo have been folded over to the opposing side of the nakago (at the time of suriage). Must have been a challenging endeavor and appears very well done.



http://www.toukenkom...na_A111118.html


  • Jussi Ekholm, Bazza, seattle1 and 3 others like this

#2 John A Stuart

John A Stuart

    Daimyo

  • Moderators
  • 7,480 posts
  • LocationArctic Coast, Canada

Posted 12 January 2019 - 01:15 AM

Well worth noting. John


  • b.hennick likes this

#3 ROKUJURO

ROKUJURO

    Sai Jo Saku

  • Members
  • 2,171 posts
  • LocationIn a deep valley

Posted 12 January 2019 - 01:21 AM

Yes, really interesting NAKAGO. Modifications are indeed very well made.


  • b.hennick likes this
Regards,

Jean C.

#4 TETSUGENDO

TETSUGENDO

    Sai Jo Saku

  • Members
  • 1,716 posts
  • LocationUSA

Posted 12 January 2019 - 03:03 AM

Masterfully done, that's the tidiest work I've seen !



-S-


StevenK


#5 Guido Schiller

Guido Schiller

    Metsuke

  • Members
  • 2,945 posts
  • LocationTōkyō

Posted 12 January 2019 - 03:45 AM

I think it's technically impossible to have a double orikaeshi-mei - my guess is that's it a tanzaku-mei inlayed in a fashion to make it look like orikaeshi. Or maybe a combination of orikaeshi and tanzaku mei.


  • b.hennick and Bazza like this

#6 b.hennick

b.hennick

    Sai Jo Saku

  • Members
  • 2,037 posts
  • LocationCanada

Posted 12 January 2019 - 03:55 AM

I could see it happen for one side but not for both.
Regards,
Barry Hennick

#7 DRDave

DRDave

    Jo Saku

  • Members
  • 173 posts
  • LocationTX

Posted 12 January 2019 - 04:21 AM

Look closely.  There's a straight razor shape folded both ways.  Nice!



dual orikaeshimei.jpg




  • raymondsinger, Bazza and Vermithrax16 like this

Dave Davis


#8 Vermithrax16

Vermithrax16

    Sai Jo Saku

  • Members
  • 1,261 posts
  • LocationBoston Metro North

Posted 12 January 2019 - 04:47 AM

I can think of a way to do this, but it's not easy at all. Great study piece, thanks Ray!


Jeremiah

"Is there gonna be a fight Wyatt?"

"I think that there must be."


#9 Ooitame

Ooitame

    Jo Saku

  • Members
  • 174 posts
  • LocationUSA

Posted 12 January 2019 - 05:31 AM

Or maybe a combination of orikaeshi and tanzaku mei.


Agreed, I would say that it looks to be both... Harimei and orikaeshi mei.
Eric

#10 raymondsinger

raymondsinger

    Juyo

  • Members
  • 2,503 posts
  • LocationUnited States

Posted 12 January 2019 - 05:32 AM

I think this was done as a single piece, with the nakago bisected (ura vs. omote) into two flaps which could be folded over each other to the opposite sides of the nakago. Crude sketch attached.

  • Jean, Geraint, peterd and 1 other like this

#11 obiwanknabbe

obiwanknabbe

    Jo Jo Saku

  • Members
  • 394 posts
  • LocationFort Worth, TX

Posted 12 January 2019 - 08:48 AM

I have trouble imagining the amount of time it would have taken to do this with hand tools. Pretty darn amazing!


Kurt Knabbe


#12 raymondsinger

raymondsinger

    Juyo

  • Members
  • 2,503 posts
  • LocationUnited States

Posted 12 January 2019 - 07:24 PM

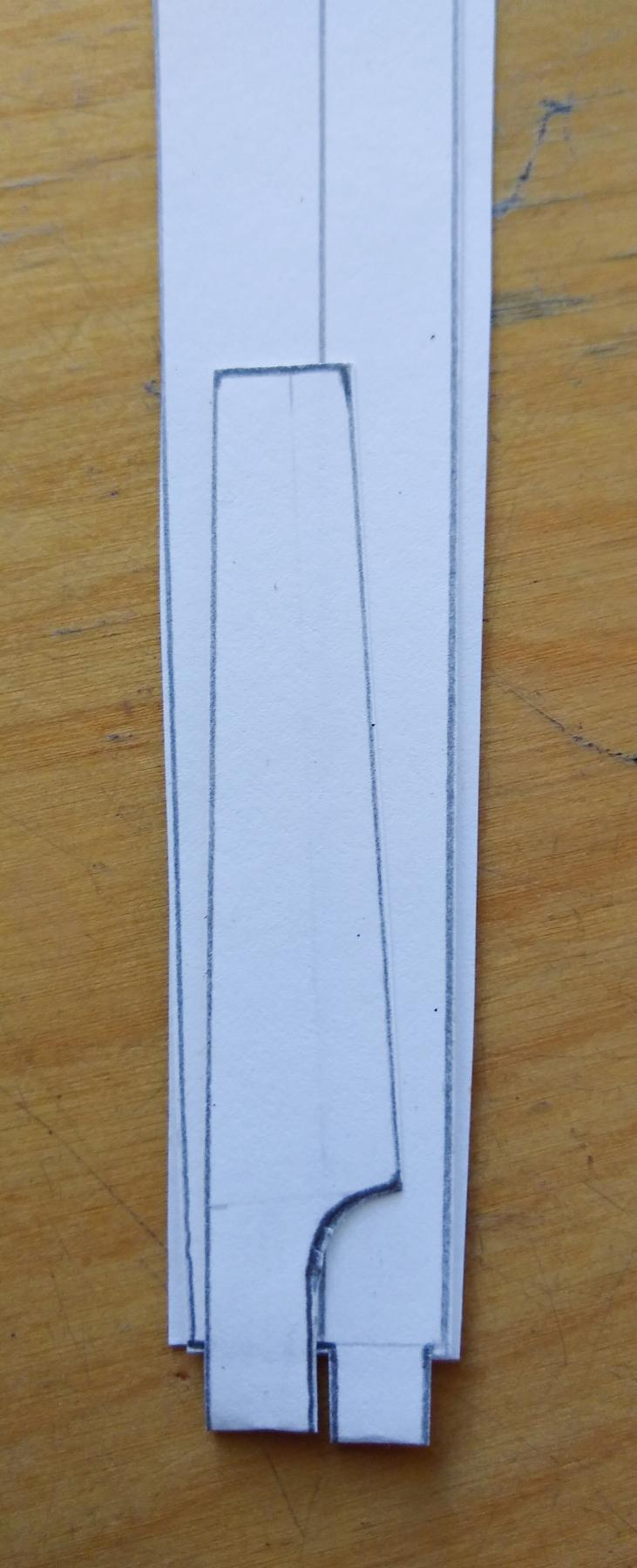

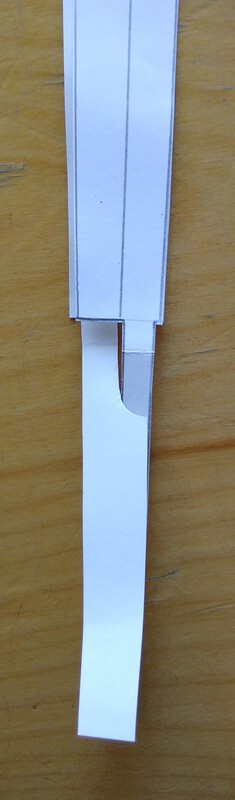

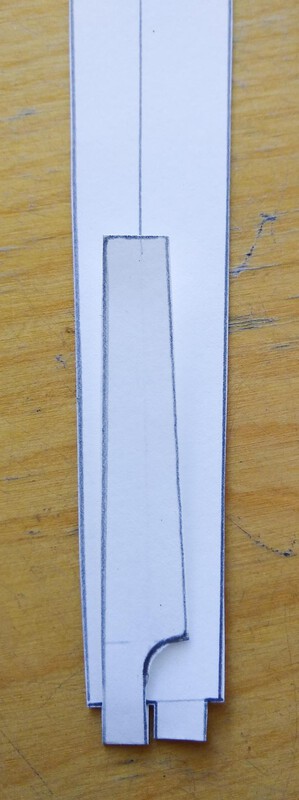

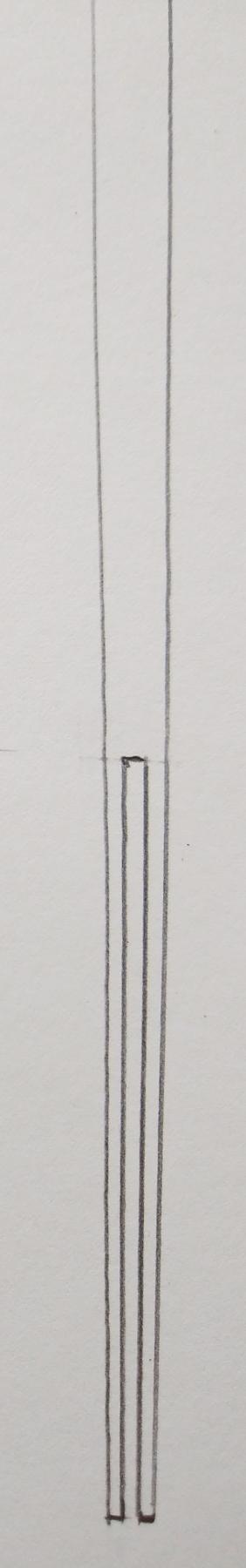

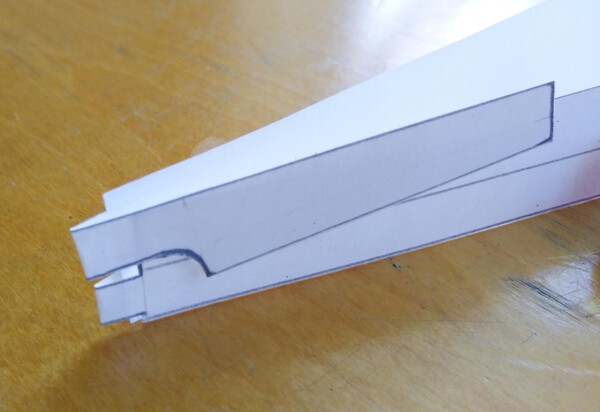

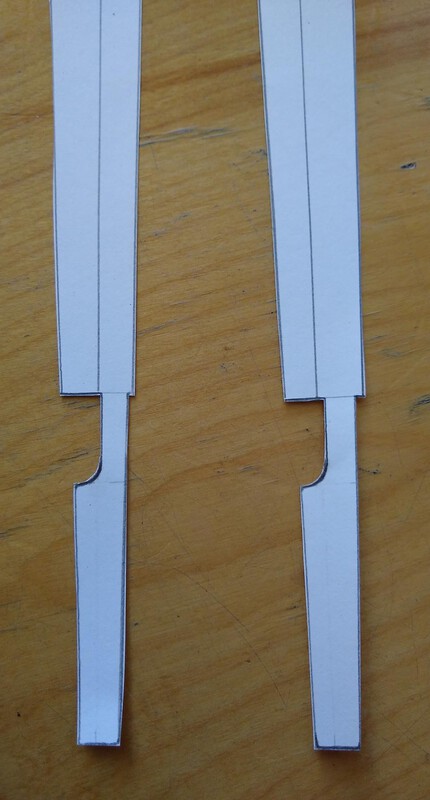

This is how it appears to me to be a true dual orikashimei with the nakago sliced omote & ura along the mune.

PSX_20190112_121720.jpg PSX_20190112_121744.jpg PSX_20190112_121804.jpg PSX_20190112_121827.jpg PSX_20190112_121855.jpg PSX_20190112_121928.jpg PSX_20190112_124339.jpg PSX_20190112_124424.jpg
  • Brian, Guido Schiller, Jean and 10 others like this

#13 Brian

Brian

    Administrator

  • Administrators
  • 13,268 posts
  • LocationSouth Africa

Posted 12 January 2019 - 08:43 PM

Wow. Good explanation Ray :clap:


  • raymondsinger likes this

- Admin -


#14 b.hennick

b.hennick

    Sai Jo Saku

  • Members
  • 2,037 posts
  • LocationCanada

Posted 12 January 2019 - 09:21 PM

You convinced me.
  • raymondsinger and Vermithrax16 like this
Regards,
Barry Hennick

#15 Peter Bleed

Peter Bleed

    Sai Jo Saku

  • Members
  • 1,123 posts
  • LocationLittle Rock, AR

Posted 12 January 2019 - 09:39 PM

And then it got tested to prove the that nakago was sturdy enough for work!

Thank you Ray for a wonderful object and a  fine analysis.

Peter


  • raymondsinger and Vermithrax16 like this
Peter Bleed

#16 kissakai

kissakai

    Sai Jo Saku

  • Members
  • 1,625 posts
  • LocationUnited Kingdon

Posted 12 January 2019 - 10:33 PM

That is a smart analysis

I'd no idea what you were talking about until I saw the paper example


  • raymondsinger and Vermithrax16 like this

Grev UK


#17 Jussi Ekholm

Jussi Ekholm

    Jo Jo Saku

  • Members
  • 899 posts
  • LocationTampere, Finland

Posted 12 January 2019 - 10:54 PM

Very interesting piece, also note the original length before suriage. As the sword is now still 72,4 cm I'd think it has been 90 cm(ish) originally, nice c.3 shaku katana.


  • Vermithrax16 likes this

Jussi Ekholm


#18 Guido Schiller

Guido Schiller

    Metsuke

  • Members
  • 2,945 posts
  • LocationTōkyō

Posted 13 January 2019 - 12:14 AM

I couldn‘t wrap my head around it, but yes, that indeed makes sense - good thinking, Ray!
  • raymondsinger likes this

#19 Peter Bleed

Peter Bleed

    Sai Jo Saku

  • Members
  • 1,123 posts
  • LocationLittle Rock, AR

Posted 13 January 2019 - 12:54 AM

Ray,

You ought to send thus piece to Token Bijutsu. With your graphics it would be clear to the whole readership - even if the text were in Eigo.

P


  • raymondsinger likes this
Peter Bleed

#20 Vermithrax16

Vermithrax16

    Sai Jo Saku

  • Members
  • 1,261 posts
  • LocationBoston Metro North

Posted 13 January 2019 - 01:17 AM

Well done Ray. That's what I was thinking but could not put into words. Man that smith must have been a steady hand to not screw that up.


  • raymondsinger likes this

Jeremiah

"Is there gonna be a fight Wyatt?"

"I think that there must be."


#21 raymondsinger

raymondsinger

    Juyo

  • Members
  • 2,503 posts
  • LocationUnited States

Posted 13 January 2019 - 01:27 AM

Thanks all, and will give consideration to that Peter.

Best regards,
Ray

#22 PNSSHOGUN

PNSSHOGUN

    Sai Jo Saku

  • Members
  • 1,274 posts
  • LocationAustralia

Posted 13 January 2019 - 02:58 AM

This sword was clearly extremely special to the owner to have this difficult Suriage performed.


John


#23 Valric

Valric

    Jo Jo Saku

  • Members
  • 307 posts

Posted 13 January 2019 - 10:36 AM

Conjecture: because of the plethora of Seki Kanemoto, including far less skilled later generations, the owner preserved the date to point to a good generation Kanemoto and paid the extra money for the difficult Suriage. Does this make any sense?


  • PNSSHOGUN likes this

Chris H.


#24 raymondsinger

raymondsinger

    Juyo

  • Members
  • 2,503 posts
  • LocationUnited States

Posted 13 January 2019 - 01:21 PM

This is Kanetomo (兼知) rather than Kanemoto and there were far fewer smiths who are candidates who might may made this sword if the nengo were absent. There is only one in the Toko Taikan, though the listing mentions that there are three in the Meikan (which I do not have on hand).

https://nihontoclub.com/smiths/KAN2597

#25 Michaelr

Michaelr

    Chu Jo Saku

  • Members
  • 56 posts
  • LocationNJ USA

Posted 13 January 2019 - 06:24 PM

Ray thank you so much for sharing this and most of all for the follow up of the paper cut out and further explanation. At first glance at the post I thought “ wow that’s really cool” then after the paper cut out follow up I was blown away. Again thank you. MikeR
  • raymondsinger likes this
Michael R
