Tips On Identifying A Solid Silver Tsuba


  • Please log in to reply
17 replies to this topic

#1 Jiro49

Jiro49

    Jo Jo Saku

  • Members
  • 580 posts

Posted 01 June 2017 - 12:09 AM

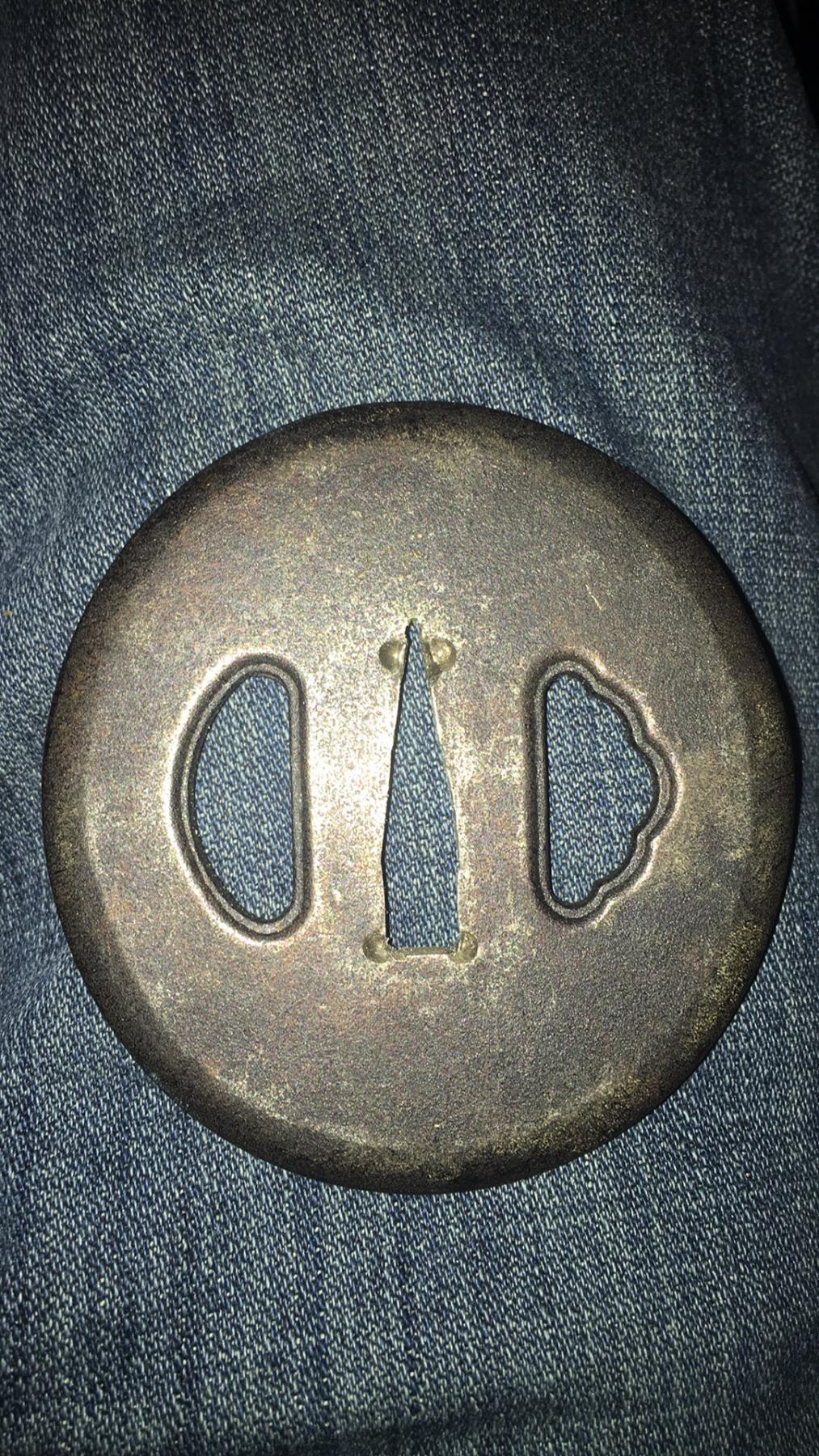

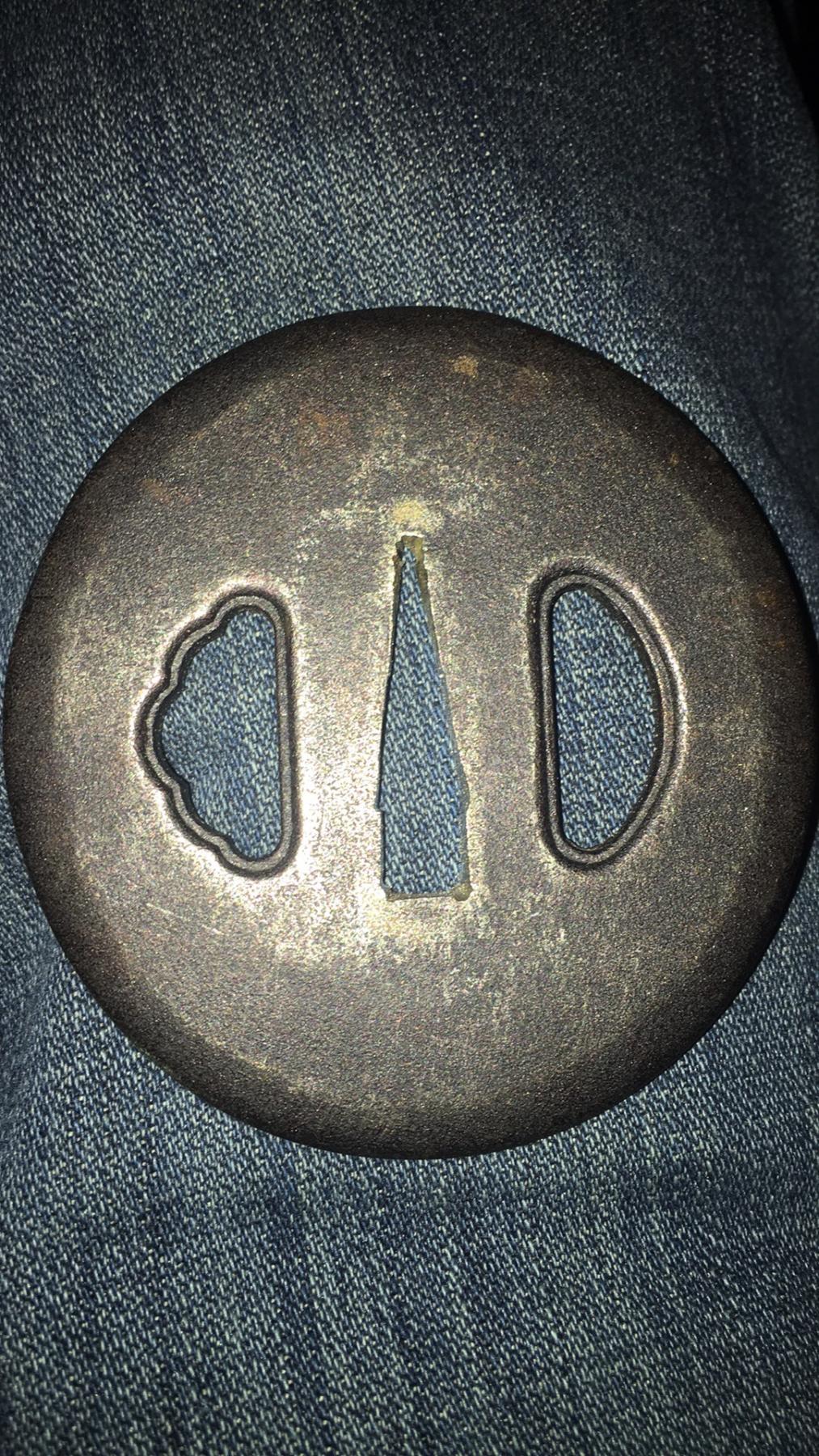

It's only very slightly magnetic, and I'm not sure..

Don't want to buy an acid test kit, but I want to be sure before I do anything with it.

Attached Thumbnails

  • IMG_6885.JPG
  • IMG_6886.JPG

  • Vermithrax16 likes this

Matt L.

“A little nonsense now and then is relished by the wisest men.”
Willy Wonka


#2 John A Stuart

John A Stuart

    Daimyo

  • Moderators
  • 6,828 posts
  • LocationArctic Coast, Canada

Posted 01 June 2017 - 12:15 AM

Silver has a very weak paramagnetism. So not sticking to a magnet much is good. Ice test; silver will melt ice quickly. Far faster than iron. John


  • Stephen, Jiro49 and Vermithrax16 like this

#3 Vermithrax16

Vermithrax16

    Jo Jo Saku

  • Members
  • 321 posts
  • LocationBoston Metro North

Posted 01 June 2017 - 01:17 AM

Silver has a very weak paramagnetism. So not sticking to a magnet much is good. Ice test; silver will melt ice quickly. Far faster than iron. John

I have a ton of silver coins/bars and the ice test is way cool. Also just dropping it (not from chest height!) on a hard surface will give a sound unlike other metals. There are even apps now for this, unreal world.



Could also be shibuichi (copper/silver alloy).


  • Stephen and Jiro49 like this

Jeremiah L.



"I wonder if we're being drawn into an ambush. Ultimately, it doesn't matter. We have to do this. We've already bought tickets for the last dance. And it's going to be a real gala event."  - Robopocalypse

#4 Jiro49

Jiro49

    Jo Jo Saku

  • Members
  • 580 posts

Posted 01 June 2017 - 03:09 AM

Just tried the ice trick, pretty damn insane!

Melted instantly!
  • Vermithrax16 likes this

Matt L.

“A little nonsense now and then is relished by the wisest men.”
Willy Wonka


#5 Vermithrax16

Vermithrax16

    Jo Jo Saku

  • Members
  • 321 posts
  • LocationBoston Metro North

Posted 01 June 2017 - 03:42 AM

Just tried the ice trick, pretty damn insane!

Melted instantly!



No joke!


  • Jiro49 likes this

Jeremiah L.



"I wonder if we're being drawn into an ambush. Ultimately, it doesn't matter. We have to do this. We've already bought tickets for the last dance. And it's going to be a real gala event."  - Robopocalypse

#6 Bugyotsuji

Bugyotsuji

    Tokubetsu Juyo

  • Members
  • 4,695 posts
  • LocationJapan

Posted 01 June 2017 - 07:44 AM

Looks like Shibuichi to me too.


Piers D

平常心 Heijoshin

#7 BulletSprinkler

BulletSprinkler

    Jo Saku

  • Members
  • 194 posts
  • LocationUSA

Posted 01 June 2017 - 08:12 AM

I have heard if you rub white silk or cotton on silver it should come back with black residue if its sterling. Shibiuchi *probably* wont do that since its pre patinated.


Jay


#8 Ford Hallam

Ford Hallam

    Heretic

  • Members
  • 2,541 posts
  • LocationTorquay, Southern England

Posted 01 June 2017 - 10:24 AM

Copper can also exhibit paramagnetism so as far as the whole gamut of Japanese non ferrous alloys goes the magnet test is not helpful I'm afraid.



As for the ice trick...



The thermal conductivity of silver is slightly higher than copper, yes. Silver is 407 W/mK and copper is 386 W/mK. But unless you're comparing two pieces of metal of exactly the same mass (that being the heat sink) and can ensure exactly the same surface contact between the ice and metal (not to mention the same size of ice) this really can't be taken as any sort of reliable test either.



For what it's worth the tsuba under discussion has a suface texture that makes me a bit suspicious. I would guess that it might be a cast brass copy with a layer of tarnished (deliberately) silver plating.


  • Brian and Wayben like this





#9 b.hennick

b.hennick

    Sai Jo Saku

  • Members
  • 1,703 posts
  • LocationCanada

Posted 01 June 2017 - 04:33 PM

Give the tsuba to a grade 9 science student and ask the student to determine the density of the tsuba. Then check the charts to determine which metal it is.  silver 10.49 g/cm3


  • Ford Hallam, Japan2112, Wayben and 1 other like this
Regards,
Barry Hennick

#10 Curran

Curran

    Sai Jo Saku

  • Members
  • 2,279 posts
  • LocationUSA

Posted 01 June 2017 - 06:53 PM

Give the tsuba to a grade 9 science student and ask the student to determine the density of the tsuba. Then check the charts to determine which metal it is.  silver 10.49 g/cm3

I was wondering why no one went this route. It was the first thing that came to mind.


Michin nom Curran


#11 Vermithrax16

Vermithrax16

    Jo Jo Saku

  • Members
  • 321 posts
  • LocationBoston Metro North

Posted 01 June 2017 - 07:03 PM

I have sensitive enough equipment in my lab but most don't have a good scale and graduated beaker or cylinder around at home to do this.

Jeremiah L.



"I wonder if we're being drawn into an ambush. Ultimately, it doesn't matter. We have to do this. We've already bought tickets for the last dance. And it's going to be a real gala event."  - Robopocalypse

#12 Ford Hallam

Ford Hallam

    Heretic

  • Members
  • 2,541 posts
  • LocationTorquay, Southern England

Posted 01 June 2017 - 11:41 PM

The whole density approach is unreliable is because pre-modern metals are never 100 percent one single metal. If this was a reasonablle analitical approach proper scientists would be using it in the real world.



For an introduction to modern scientific investigation and analysis of ancient artefacts I would recommend; ' https://www.amazon.co.uk/Science-Past-Sheridan-Bowman/dp/0714120715/ref=sr_1_4?ie=UTF8&qid=1496353379&sr=8-4&keywords=science+and+the+past"



In fact it's entirely feasable to devise an alloy with the same density as solid silver but with no silver being present at all.  A number of bronze alloys might be easy candidates.







#13 BulletSprinkler

BulletSprinkler

    Jo Saku

  • Members
  • 194 posts
  • LocationUSA

Posted 02 June 2017 - 12:54 AM

I have sensitive enough equipment in my lab but most don't have a good scale and graduated beaker or cylinder around at home to do this.



meth lab? lol.


  • Ford Hallam and Vermithrax16 like this

Jay


#14 Vermithrax16

Vermithrax16

    Jo Jo Saku

  • Members
  • 321 posts
  • LocationBoston Metro North

Posted 02 June 2017 - 02:10 AM

meth lab? lol.

Don't out somebody on the internet Jay!!!    :laughing:


Jeremiah L.



"I wonder if we're being drawn into an ambush. Ultimately, it doesn't matter. We have to do this. We've already bought tickets for the last dance. And it's going to be a real gala event."  - Robopocalypse

#15 Brian

Brian

    Administrator

  • Administrators
  • 11,643 posts
  • LocationSouth Africa

Posted 02 June 2017 - 08:34 AM

So we know how not to check it.
So Ford...how would someone conclusively check if they wanted to, or is this beyond the average means of the collector out there?


- Admin -


#16 Ford Hallam

Ford Hallam

    Heretic

  • Members
  • 2,541 posts
  • LocationTorquay, Southern England

Posted 02 June 2017 - 09:21 AM

Hi Brian



XRF analysis is probably the most reasonable way to find out what it is. Having said that a good understanding of what sorts of elements are likely to be in Japanese alloys (and why and how they are there) is important to properly understand the numbers.



An alloy of copper with only 20% silver can be treated to look like pure silver by leaching the copper from the surface. This is called depletion silvering and was very common in Edo Japan. Similarly a low carat gold alloy can be made to look like pure gold be leaching out the silver and copper from the surface, that'd be depletion gilding and was also common wherever gold was used. So the use of terms like solid gold and solid silver may be a bit deceptive.



As an example (and this tsuba, if it is silver plated, would pose a similar problem) some analitical work carried out by an Italian team at the Museo Stibbert recently included a copper iroe tsuba. The results on an inlaid fish were interpreted as being shakudo as it apeared to be made of copper and traces of gold. What had been ignored was a trace of murcury also. So in fact what it was was a copper fish with a rubbed fire gilt (kin-keshi) effect on the scales. To be fair the tsuba was a bit tarnished and the colour of the inlays unclear but never the less it shows how by just having raw data it is still possible to get an innacurate result.



There are many other issues that need to be taken into account when interpreting analysis results. If this tsuba is silver and supposed to be Edo period then it had better also contain about 0.3% gold. If not I would suspect a modern refined silver. If it's brass there are similar tell tale trace elements that will reveal it's age too.



Touchstone and acid tests won't help with anything beyond the common precious metal alloys. Plating complicates things.


  • zanilu likes this





#17 dominnimod

dominnimod

    Jo Saku

  • Members
  • 225 posts
  • LocationSpain

Posted 05 June 2017 - 02:29 AM

I dont think this it's an actual antique tsuba, its an alloy

Seems the tsuba of a hanwei Paul Chen practical katana/waki(http://casiberia.com...l-katana/sh1070)



  • Ford Hallam and TosoguCz like this
<p>(☞゚∀゚)☞ Jose L. Ubaldo

#18 echoe

echoe

    Chu Saku

  • Members
  • 22 posts
  • Locationusa

Posted 10 July 2017 - 12:56 AM

FH. I just bought "Science and the Past". Thanks for the reference!

tom


Tom C.
